Stainless steel welded wire mesh is a durable mesh product made by welding high-quality stainless steel wires at their intersections. This creates a grid-like structure that is tough, long-lasting, and resistant to corrosion. Whether you need it for fencing, security, animal enclosures, or industrial machinery safety — this mesh delivers strength and reliability.
🔧 Materials and Grades Stainless Steel Welded Wire Mesh
At BMP, we manufacture stainless steel welded wire mesh using the following grades:
- 201 Stainless Steel – Affordable and decent corrosion resistance
- 304 Stainless Steel – Most popular, good corrosion resistance
- 316 Stainless Steel – Marine-grade, ideal for high corrosion environments
- 316L Stainless Steel – Extra low carbon, great for chemical resistance
- Custom materials available on request
🔬 Chemical Composition (%)
| Element |
304 Stainless Steel |
316 Stainless Steel |
304L Stainless Steel |
316L Stainless Steel |
| Carbon (C) |
≤ 0.08 |
≤ 0.08 |
≤ 0.03 |
≤ 0.03 |
| Manganese (Mn) |
≤ 2.00 |
≤ 2.00 |
≤ 2.00 |
≤ 2.00 |
| Phosphorus (P) |
≤ 0.045 |
≤ 0.045 |
≤ 0.045 |
≤ 0.045 |
| Sulfur (S) |
≤ 0.030 |
≤ 0.030 |
≤ 0.030 |
≤ 0.030 |
| Silicon (Si) |
≤ 1.00 |
≤ 1.00 |
≤ 1.00 |
≤ 1.00 |
| Chromium (Cr) |
18.0–20.0 |
16.0–18.0 |
18.0–20.0 |
16.0–18.0 |
| Nickel (Ni) |
8.0–10.5 |
10.0–14.0 |
8.0–12.0 |
10.0–14.0 |
| Molybdenum (Mo) |
— |
2.0–3.0 |
— |
2.0–3.0 |
| Iron (Fe) |
Balance |
Balance |
Balance |
Balance |
⚙️ Physical Properties
| Property |
304 |
316 |
304L |
316L |
| Density (g/cm³) |
7.93 |
7.98 |
7.93 |
7.98 |
| Melting Point (°C) |
1400–1450 |
1375–1400 |
1400–1450 |
1375–1400 |
| Tensile Strength (MPa) |
515 – 750 |
515 – 760 |
485 – 620 |
485 – 620 |
| Yield Strength (MPa) |
≥ 205 |
≥ 205 |
≥ 170 |
≥ 170 |
| Elongation (% in 50mm) |
≥ 40 |
≥ 40 |
≥ 40 |
≥ 40 |
| Hardness (Brinell) |
≤ 201 HB |
≤ 217 HB |
≤ 201 HB |
≤ 217 HB |
| Magnetic Properties |
Non-magnetic |
Non-magnetic |
Non-magnetic |
Non-magnetic |
| Corrosion Resistance |
Good |
Excellent |
Good |
Excellent |
| Welding Performance |
Excellent |
Excellent |
Superior |
Superior |
📝 Summary of Use:
| Grade |
Best Use Cases |
| 304 |
General use, indoor equipment, architecture, light-duty industrial fencing |
| 316 |
Marine environments, chemical plants, coastal fencing |
| 304L |
Welding-heavy applications with less risk of intergranular corrosion |
| 316L |
Pharmaceuticals, seawater environments, food-grade and sanitary applications |
🧩 Types of Stainless Steel Welded Wire Mesh
📌 Standard Wire Mesh
General-purpose mesh with uniform square or rectangular openings.
📌 Mesh Rolls
Flexible and easy to handle for fencing, agriculture, and DIY applications.
📌 Mesh Sheets

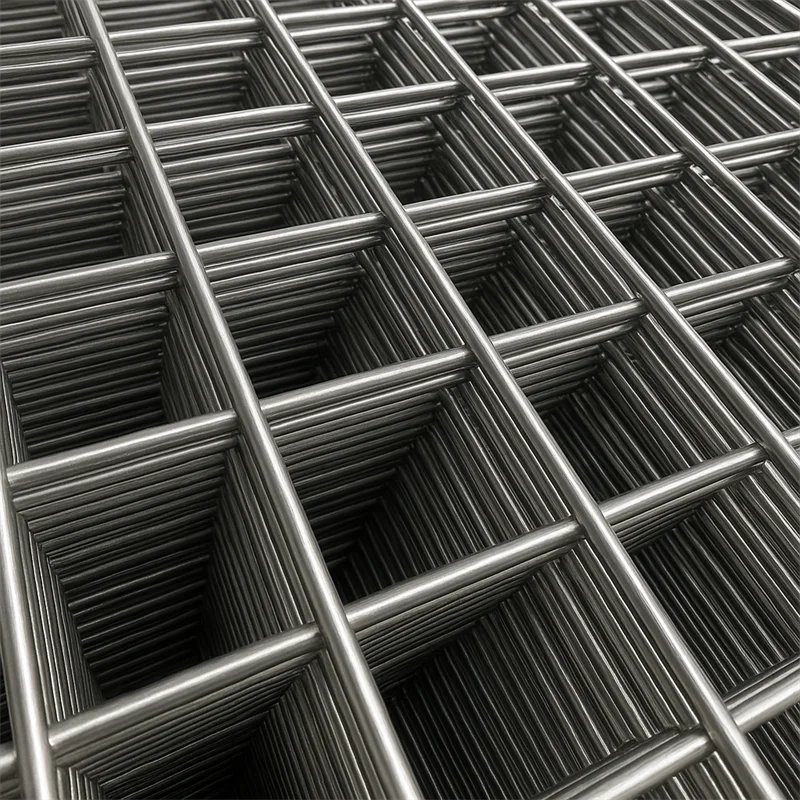

Rigid sheets for machinery guards, construction barriers, and architectural use.
💡 Benefits of Stainless Steel Welded Wire Mesh
- Rust-proof and corrosion-resistant
- Strong and impact-resistant
- Long service life in harsh outdoor or industrial environments
- Easy to clean – perfect for food and pharmaceutical facilities
- Smooth surface and good appearance
- Maintains shape without warping
🛠️ Common Applications of Stainless Steel Welded Wire Mesh
✅ Industrial
Machine guards, equipment cages, ventilation panels
✅ Agricultural
Fencing, animal enclosures, cages for birds, rabbits, and goats
✅ Building & Infrastructure
Reinforcement, partitions, floor grating
✅ Security
Window guards, security fencing, anti-theft barriers
✅ Environment & Hygiene
Food processing, labs, clean rooms
📏 Specific Uses by Mesh Size
| Mesh Size |
Use Case |
| 6 x 6mm |
Rat protection |
| 13 x 13mm |
Bird protection, fruit cages |
| 13 x 25mm |
Small animal cages |
| 20 x 20mm |
Rat & squirrel protection |
| 25 x 25mm |
Fox & pet enclosures |
| 50 x 50mm |
Dog cages, fox fencing |
📦 Packaging Options Stainless Steel Welded Wire Mesh
At BMP, we offer custom packaging for safety and efficiency during shipping:
- Plastic film wrap + wooden pallet
- Carton box for smaller rolls
- Label with specifications and traceability code
- Shrink-wrap or waterproof covering (on request)
❓ Frequently Asked Questions (FAQ)
Q1: Can I use stainless steel welded wire mesh outdoors?
Yes, it is ideal for outdoor use because it resists rust, corrosion, and weathering.
Q2: Which stainless steel grade should I choose?
304 suits most uses, but go for 316/316L if your environment has high salt or chemical exposure.
Q3: What are the standard sizes available?
Widths: 0.4 – 2 meters | Lengths: 5 – 50 meters (custom sizes available)
Q4: Is it easy to install?
Yes. You can use clips, screws, or welding to fix the mesh easily.
📝 What to Consider Before Choosing a Stainless Steel Welded Wire Mesh
- Environmental Conditions – Salt, humidity, chemicals? Choose 316/316L.
- Strength Needs – Bigger wire diameter = stronger mesh.
- Mesh Size – Smaller holes for rodent or bird control, larger for pets or fences.
- Budget – 201 is more affordable; 316 is higher-end.
- Application – Security, hygiene, or decor? The right finish and size matter.
⭐ Customer Feedback from Qatar
“We received our stainless steel welded wire mesh rolls from BMP three weeks ago. Perfect finish, strong welding, and zero rust — even after outdoor exposure. Our construction site team in Doha is highly satisfied. Will reorder again!”
— Mohammed Al-Saad, Site Manager, Qatar BuildCo
📊 Complete Specifications of Stainless Steel Welded Wire Mesh
See the table below (already provided) with full dimensions, wire diameter, HS code (73144900), and reference prices.
| Opening (Inch) |
Opening (Metric) |
Wire Diameter |
HS Code |
Price (USD/ft²) |
| 1/4″ x 1/4″ |
6.4mm x 6.4mm |
BWG24-22 |
73144900 |
$2.50 |
| 3/8″ x 3/8″ |
10.6mm x 10.6mm |
BWG22-19 |
73144900 |
$2.70 |
| 1/2″ x 1/2″ |
12.7mm x 12.7mm |
BWG23-16 |
73144900 |
$2.80 |
| 5/8″ x 5/8″ |
16mm x 16mm |
BWG21-18 |
73144900 |
$3.00 |
| 3/4″ x 3/4″ |
19.1mm x 19.1mm |
BWG21-16 |
73144900 |
$3.20 |
| 1″ x 1/2″ |
25.4mm x 25.4mm |
BWG21-16 |
73144900 |
$3.30 |
| 1-1/2″ x 1-1/2″ |
38mm x 38mm |
BWG19-14 |
73144900 |
$3.50 |
| 1″ x 2″ |
25.4mm x 12.7mm |
BWG16-14 |
73144900 |
$3.60 |
| 2″ x 2″ |
50.8mm x 50.8mm |
BWG15-12 |
73144900 |
$3.80 |
| 2″ x 4″ |
101.6mm x 101.6mm |
BWG15-12 |
73144900 |
$4.00 |
| 4″ x 4″ |
101.6mm x 152.4mm |
BWG15-12 |
73144900 |
$4.20 |
| 4″ x 6″ |
101.6mm x 152.4mm |
BWG15-12 |
73144900 |
$4.40 |
| 6″ x 6″ |
152.4mm x 152.4mm |
BWG15-12 |
73144900 |
$4.60 |
| 6″ x 8″ |
152.4mm x 203.2mm |
BWG14-12 |
73144900 |
$4.80 |
🏁 Conclusion
Stainless steel welded wire mesh is a strong, versatile, and corrosion-resistant material that serves well in industries, agriculture, security, and more. It delivers excellent long-term value with minimal maintenance. BMP provides high-quality mesh in various grades, types, and sizes to meet your exact needs.
📩 Contact BMP now to get a quote or free sample of welded wire mesh tailored to your project!
