不銹鋼焊接金屬絲網

Welded wire mesh made from stainless steel is a robust and adaptable material used across a wide range of industries. Created by welding steel wires at their intersections, it forms a rigid and uniform grid that offers strength, 耐腐蝕性, and long-term durability. Whether in industrial settings, 建設, agriculture, or architecture, it provides reliable performance in demanding environments.

Characteristics Stainless Welded Wire Mesh

1. 材料成分

Manufactured primarily from grades 304 或 316 不銹鋼, this mesh offers excellent resistance to rust, chemicals, and extreme temperatures. 等級 304 is ideal for general use, while 316 is preferred in marine or chemically aggressive environments due to its molybdenum content.

2. Welding Process

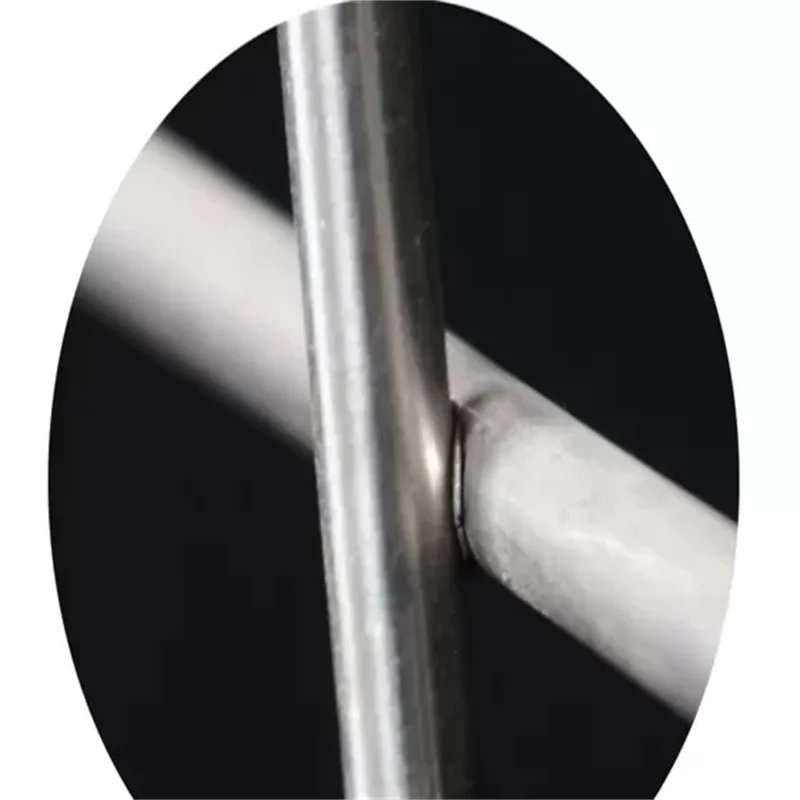

The mesh is produced through an electrical resistance welding technique, ensuring strong joints at each intersection. This prevents unraveling and maintains structural integrity even when cut.

3. Mesh Configuration

• Square or Rectangular Openings
• Wire diameters range from 0.5 mm to over 2.5 毫米
• Opening sizes typically range from 6 mm至 50 毫米

Specification Table Stainless Welded Wire Mesh

Stainless Steel Welded Wire Mesh Specifications

網格尺寸 (英寸)	線徑 (毫米)	線規 (BWG公司)	間隙尺寸 (毫米)	Open Area (%)	Typical Application
1/4″ x 1/4″	0.56 – 0.71	24 – 22	~6.35	~80 – 85	Filtration, rodent control, fine screening
3/8″ x 3/8″	0.64 – 1.07	23 – 19	~9.5	~75 – 80	Machine guarding, ventilation
1/2″ x 1/2″	0.71 – 1.65	22 – 16	~12.7	~70 – 80	Bird cages, 圍欄, sieving
3/4″ x 3/4″	0.81 – 1.65	21 – 16	~19.1	~70 – 80	動物籠, 圍欄
1“x 1”	0.81 – 2.11	21 – 14	~25.4	~80 – 90	一般圍欄, 儲物箱
1″ x 2″	1.47 – 2.11	17 – 14	~25.4 x 50.8	~85 – 90	隔板, 通風護網
2″ x 2″	1.65 – 2.77	16 – 12	~50.8	~85 – 90	重型圍欄, 安全網

🔧 不銹鋼焊接鐵絲網 – 規格表

法典	網格尺寸 (英寸)	網格尺寸 (毫米)	線規 (SWG公司)	線徑 (毫米)	重量 (公斤/平方米)
BMPSS-1	1/4″ × 1/4″	6.4 × 6.4	22# – 24#	0.6 – 0.7	0.72 – 0.98
BMPSS-2	3/8″ × 3/8″	10.6 × 10.6	19# – 22#	0.7 – 1.0	0.65 – 1.3
BMPSS-3	1/2″ × 1/2″	12.7 × 12.7	16# – 23#	0.6 – 1.6	0.36 – 2.56
BMPSS-4	5/8″ × 5/8″	16 × 16	18# – 21#	0.8 – 1.2	1.2 – 1.3
BMPSS-5	3/4″ × 3/4″	19.1 × 19.1	16# – 21#	0.8 – 1.6	0.4 – 1.7
BMPSS-6	1″ × 1/2″	25.4 × 12.7	16# – 20#	0.9 – 1.6	0.61 – 1.92
BMPSS-7	1″ × 1″	25.4 × 25.4	14# – 21#	0.8 – 1.2	0.32 – 2
BMPSS-8	1 1/2″ × 1 1/2″	38 × 38	14# – 19#	1.0 – 2.0	0.3 – 1.3
BMPSS-9	1″ × 2″	25.4 × 50.8	14# – 16#	1.6 – 2.0	3.84 – 6
BMPSS-10	2″ × 2″	50.8 × 50.8	12# – 16#	1.6 – 2.6	0.25 – 1.6
BMPSS-11	2″ × 3″	50 × 75	13# – 16#	1.6 – 2.3	0.53 – 1.10
BMPSS-12	3″ × 3″	75 × 75	12# – 16#	1.6 – 2.6	0.17 – 0.43
BMPSS-13	2″ × 4″	50 × 100	13# – 14#	2.0 – 2.3	0.75 – 0.99
BMPSS-14	4″ × 4″	100 × 100	13# – 14#	2.0 – 2.3	0.5 – 0.66
BMPSS-15	8″ × 8″	200 × 200	13# – 14#	2.0 – 2.3	0.25 – 0.33

📐 可用尺寸

• 面板:
  3′ × 6′, 4′ × 8′, 5′ × 10′
  1 m × 2 m, 1.2 m × 2.4 m, 1.5 m × 3 m, 2 m × 4 m

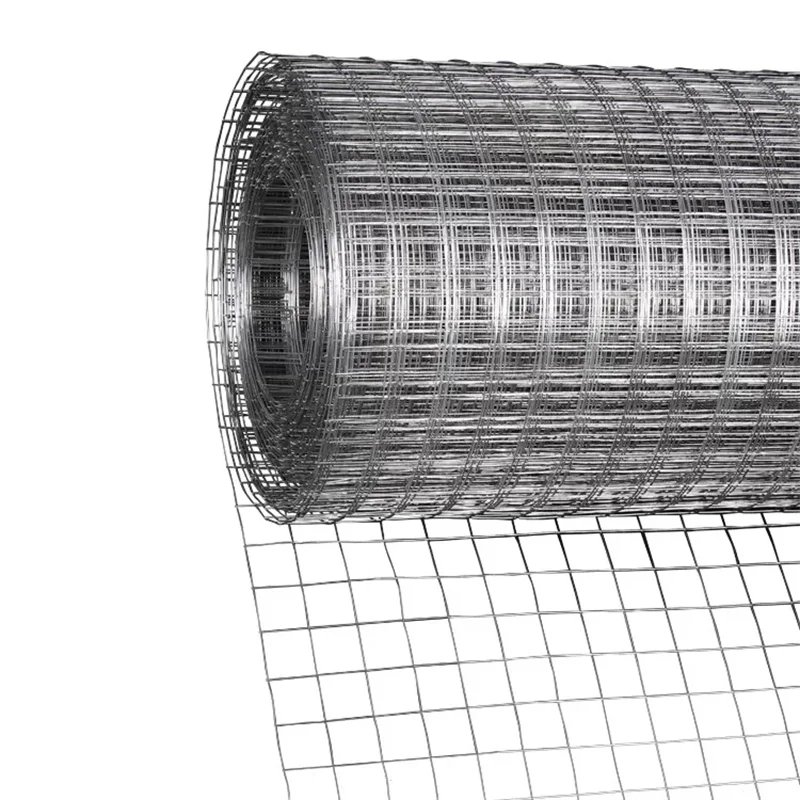

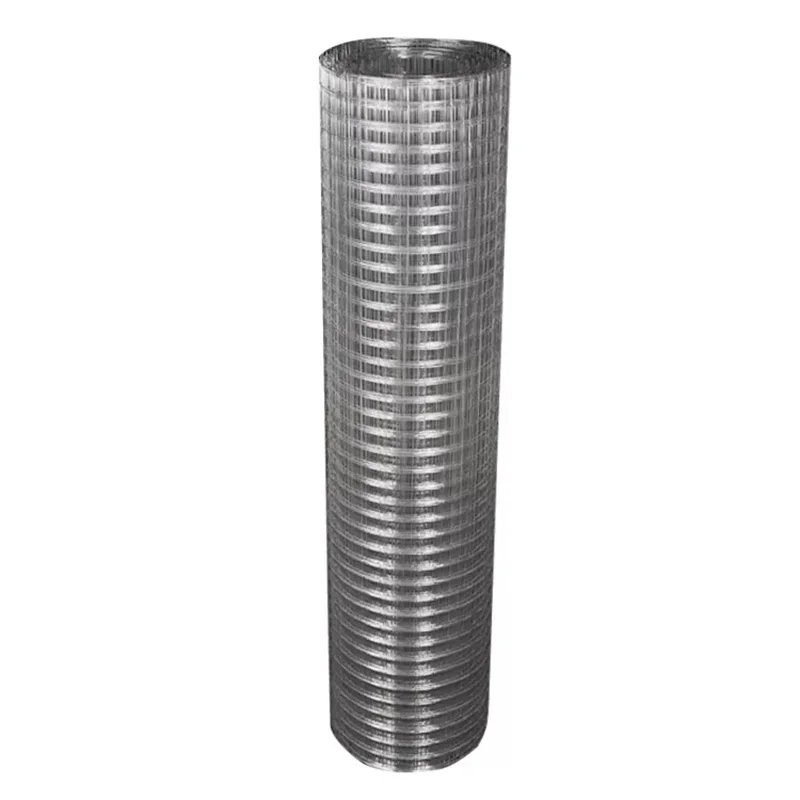

• 卷材:
  標準闊度: 2400 毫米
  長度: 可按要求訂製

🔩 可選材料等級 不銹鋼焊接鐵絲網

• SS201, SS202, SS302, SS304, SS304L, SS316, SS316L系列

📦 包裝

• 卷材以防水紙包裹
• Panels packed on wooden pallets
• Custom packaging available on request

Material Options

等級	描述
SS304	Most common, good corrosion resistance, indoor/outdoor use
SS316	High corrosion resistance, suitable for marine/chemical use

Available Forms

• 卷材: Up to 48″ wide, lengths up to 100 英尺
• 面板: Common sizes: 4′ x 8′, 4′ x 10′ (custom sizes available)

Surface Finish Options

• Mill finish: Standard raw stainless surface
• Electropolished: Enhanced corrosion resistance and aesthetic finish
• Pickled & passivated: For extra protection in aggressive environments

Applications Stainless Welded Wire Mesh

• Industrial: Conveyor belts, safety guards, drying racks
• 建設: Concrete reinforcement, partition walls
• 農業: 動物籠, grain storage bins
• Architecture: Decorative panels, 外牆, 圍欄
• Food & Pharma: Sanitary trays, equipment guards

優勢

• Long service life with minimal maintenance
• Withstands weathering, chemical exposure, and physical impact
• Easy to fabricate, 焊接, or cut on-site
• 衛生並符合食品級標準

結論

不銹鋼焊接網對於需要結構強度的用戶而言，是一個實用且高效的解決方案, 可靠性, 並且具備抗腐蝕性. 無論您是為工業設備指定規格, 圍欄, 或建築用途, 它的表現都能長期證明其成本效益. 提供多種網孔尺寸, 線徑, 及表面處理方式, 可根據幾乎任何應用需求進行客製化.
