Stainless Steel Ferrule Rope Mesh: The Ultimate Guide

» Stainless Steel Ferrule Rope Mesh » Stainless Steel Ferrule Rope Mesh: The Ultimate Guide

  • Stainless Steel Ferrule Rope Mesh: The Ultimate Guide

    CATEGORY AND TAGS:
    Stainless Steel Ferrule Rope Mesh
    enquiry
    • Specifications

    Stainless steel ferruled rope mesh, also known as cable mesh, is a highly durable, flexible, and versatile material. It’s similar to Stainless Steel Knotted Rope Mesh in physical properties, but the key difference is the use of ferrules to combine neighboring ropes. This unique feature makes it suitable for numerous applications in everyday life.

    The production process

    To make stainless steel ferrule rope mesh, start by selecting the right type of stainless steel wire and ferrule material, like stainless steel or aluminum. Cut wires to length considering your mesh dimensions. Arrange the wires parallel and weave them into the desired pattern, typically rhomboid or diamond. Slide ferrules at intersecting points and use a crimping tool to secure them, locking the mesh structure. Shape and trim the mesh as needed, then inspect and apply protective finishes for durability. This process requires precision to ensure the mesh is both functional and visually appealing.

    20230425165049_79421

    Features

    1. The mesh is lightweight and very flexible. You can easily change its width, length, rope diameter, and opening size. You can also shape it into diagonal and irregular forms, making it perfect for many different installations.
    2. High Strength and Impact Resistance: The ferrules firmly connect stainless steel ropes, giving the mesh its strong and impact-resistant properties.
    3. Excellent Softness: With a rope construction of 7×7 or 7×19, the mesh is soft and easy to bend, fold, transport, and install.
    4. Rust-Resistance, Recyclability, and Durability: Composed of 304, 316, 304L, or 316L stainless steel, the mesh is rust-resistant and can last for over 30 years.
    5. Impressive Appearance and Perspectivity: The diamond-shaped openings and ferrules give the mesh a visually appealing look, making it suitable for various decorative purposes.
    6. Maintenance-Free and Environmentally Friendly: The mesh is non-toxic, rust-resistant, and doesn’t deform over time, requiring no maintenance.

    20230425165122_68576

    Applications

    Stainless steel ferruled rope mesh is highly flexible and suitable for various applications, including:

    1. Green Walls: The mesh can be used to create stunning green walls in residential and commercial buildings.
    2. Balustrades: The mesh offers a safe and visually appealing option for balustrades in homes, offices, and public spaces.
    3. Animal Enclosures and Aviaries: The durable and rust-resistant properties make the mesh ideal for animal enclosures, cages, and aviaries.
    4. Building Decorations: Its aesthetic appeal and flexibility make it an excellent choice for building decorations and other architectural features.

    The specifications of stainless steel ferruled rope mesh vary depending on the rope construction, diameter, aperture, and breaking force. For a detailed list of specifications, please refer to the table provided in the original post.

    Code Rope Construction Rope Diameter Aperture Breaking Force
    Inch mm mm kN
    BM-01 7 × 19 1/8 3.2 120 × 208 7.38
    BM-02 7 × 19 1/8 3.2 100 × 173 7.38
    BM-03 7 × 19 1/8 3.2 90 × 156 7.38
    BM-04 7 × 7 3/32 2.4 100 × 173 4.18
    BM-05 7 × 7 3/32 2.4 90 × 156 4.18
    BM-06 7 × 7 3/32 2.4 80 × 139 4.18
    BM-07 7 × 7 3/32 2.4 70 × 121 4.18
    BM-08 7 × 7 5/64 2.0 100 × 173 3.17
    BM-09 7 × 7 5/64 2.0 90 × 156 3.17
    BM-10 7 × 7 5/64 2.0 80 × 139 3.17
    BM-11 7 × 7 5/64 2.0 70 × 121 3.17
    BM-12 7 × 7 1/16 1.6 80 × 139 2.17
    BM-13 7 × 7 1/16 1.6 70 × 121 2.17
    BM-14 7 × 7 1/16 1.6 60 × 104 2.17
    BM-15 7 × 7 1/16 1.6 51 × 87 2.17
    BM-16 7 × 7 3/64 1.2 80 × 139 1.22
    BM-17 7 × 7 3/64 1.2 60 × 104 1.22
    BM-18 7 × 7 3/64 1.2 50 × 87 1.22
    BM-19 7 × 7 3/64 1.2 40 × 69 1.22

    Weight

    The weight of the stainless steel ferruled rope mesh depends on the specific model and dimensions chosen. Its lightweight nature makes it easy to handle and transport.

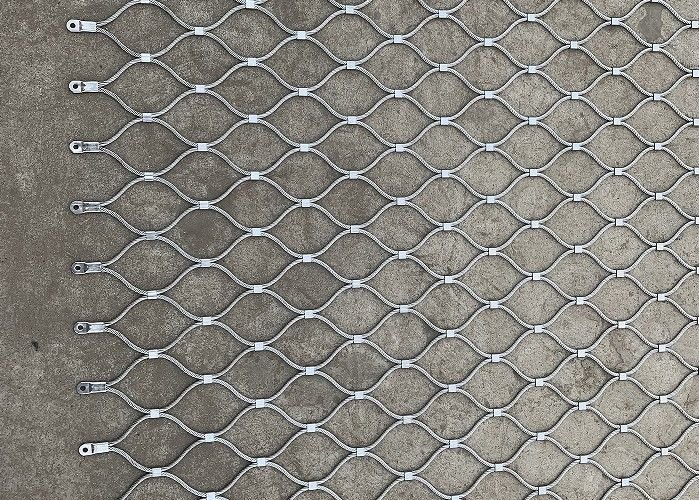

    pl166668029-flexible_high_strength_stainless_steel_ferrule_rope_mesh_for_decoration_green_wall

    Materials

    The mesh is made from high-quality stainless steel, including 304, 316, 304L, or 316L, ensuring rust resistance and durability.

    Complied Standards

    Stainless steel ferruled rope mesh complies with industry standards to ensure its quality and performance.

    Packaging Details

    The mesh is typically packed in water-proof cloth and wooden cases, with additional packaging options available based on customer requirements.

    In conclusion, stainless steel ferruled rope mesh offers a range of features and benefits, making it an ideal choice for various applications in daily life. Its lightweight, high flexibility, and durable properties, combined with its impressive appearance, make it a versatile and valuable material.

    20230425165155_34814
