stainless steel ferrule rope mesh

» Tensile Mesh » stainless steel ferrule rope mesh

    • stainless steel ferrule rope mesh

    CATEGORY AND TAGS:
    Tensile Mesh
    • Certification: ISO9001
    • Wire Diameter: 1.0mm – 3.0mm
    • Wire Structure: 7×7, 7×19
    • Feature: Flexible, High-Strength
    • Cable Mesh Type: Ferruled Style
    • Transport Package: Wooden Pallet
    • Specification (Available Sizes):

      • 1.0mm

      • 1.5mm

      • 1.6mm

      • 2.0mm

    • Trademark: BMP
    • Origin: Anping, Hebei, China
    • HS Code: 7314490000
    • Production Capacity: 1,000 m² / Day
    • FOB Price Range: $12.38 – $49.33 per m²
    enquiry
    • Specifications
    • What is ferruled rope mesh
    • Choosing Ferrule or Knotted Mesh

    BMP supplies premium stainless steel ferrule rope mesh, also known as SS ferrule mesh or X-TEND mesh, widely used in architectural design, safety fencing, and green facades.

    This advanced mesh combines stainless steel cables with pressed stainless steel ferrules, delivering a flexible yet ultra-strong structure with exceptional aesthetic appeal.

    Using custom molds, we press each ferrule securely onto the cable, ensuring panel consistency, durability, and readiness for demanding applications.

    Specifications

    • Material: Stainless steel cable + ferrule
    • Weave Types: Plain weave, twill weave, Dutch weave, twill Dutch weave
    • Angle: Standard mesh angle is 60 degrees
    • Surface Treatment Options: PVDF, PVD, spraying
    • Available Finishes: Natural, black anodized, galvanized
    • Accessories Provided: Screws, wall anchors, bolts, track rails
    • Custom Shapes: Supports diagonal and irregular shapes
    • Mesh Uses: Ideal for fencing, railing, trellis, balustrades, façades

    Complete Stainless Steel Ferrule Rope Mesh Specifications

     3.2 mm (1/8″)

    Item No. Cable Dia. (inch) Cable Dia. (mm) Mesh Opening (inch) Mesh Opening (mm) HS Code FOB Price (USD/m²)
    BM-32120F 1/8 3.2 4.75 × 8.23 120 × 207.8 73144900 $38
    BM-32102F 1/8 3.2 4 × 6.9 102 × 176.7 73144900 $36
    BM-3290F 1/8 3.2 3.55 × 6.15 90 × 156 73144900 $35
    BM-3276F 1/8 3.2 3 × 5.2 76 × 131.6 73144900 $34
    BM-3251F 1/8 3.2 2 × 3.46 51 × 88.3 73144900 $32

    2.4 mm (3/32″)

    Item No. Cable Dia. (inch) Cable Dia. (mm) Mesh Opening (inch) Mesh Opening (mm) HS Code FOB Price (USD/m²)
    BM-24102F 3/32 2.4 4 × 6.9 102 × 176.7 73144900 $34
    BM-2490F 3/32 2.4 3.55 × 6.15 90 × 156 73144900 $33
    BM-2476F 3/32 2.4 3 × 5.2 76 × 131.6 73144900 $32
    BM-2460F 3/32 2.4 2.4 × 4.16 60 × 104 73144900 $31
    BM-2451F 3/32 2.4 2 × 3.46 51 × 88.3 73144900 $30

     2.0 mm (5/64″)

    Item No. Cable Dia. (inch) Cable Dia. (mm) Mesh Opening (inch) Mesh Opening (mm) HS Code FOB Price (USD/m²)
    BM-2076F 5/64 2.0 3 × 5.2 76 × 131.6 73144900 $30
    BM-2060F 5/64 2.0 2.4 × 4.16 60 × 104 73144900 $29
    BM-2051F 5/64 2.0 2 × 3.46 51 × 88.3 73144900 $28
    BM-2038F 5/64 2.0 1.5 × 2.6 38 × 65.8 73144900 $27

    stainless steel ferrule rope mesh  Cable Diameter: 1.6 mm (1/16″) & 1.2 mm (3/64″)

    Item No. Cable Dia. (inch) Cable Dia. (mm) Mesh Opening (inch) Mesh Opening (mm) HS Code FOB Price (USD/m²)
    BM-1676F 1/16 1.6 1.2 × 2.08 76 × 131.6 73144900 $26
    BM-1651F 1/16 1.6 2 × 3.46 51 × 88.3 73144900 $25
    BM-1638F 1/16 1.6 1.5 × 2.6 38 × 65.8 73144900 $25
    BM-1630F 1/16 1.6 1.2 × 2.08 30 × 52 73144900 $24
    BM-1625F 1/16 1.6 1 × 1.73 25.4 × 44 73144900 $24
    BM-1238F 3/64 1.2 1.5 × 2.6 38 × 65.8 73144900 $23
    BM-1230F 3/64 1.2 1.2 × 2.08 30 × 52 73144900 $23
    BM-1225F 3/64 1.2 1 × 1.73 25.4 × 44 73144900 $22
    BM-1220F 3/64 1.2 0.8 × 1.39 20 × 34.6 73144900 $21

    Key Bullet Point Specs

    • BM-32120F: Cable 3.2 mm (1/8″), Mesh 120 × 207.8 mm, HS Code 73144900, FOB $38/m²
    • BM-32102F: Cable 3.2 mm, Mesh 102 × 176.7 mm, FOB $36/m²
    • BM-3290F: Cable 3.2 mm, Mesh 90 × 156 mm, FOB $35/m²
    • BM-3276F: Cable 3.2 mm, Mesh 76 × 131.6 mm, FOB $34/m²
    • BM-3251F: Cable 3.2 mm, Mesh 51 × 88.3 mm, FOB $32/m²

    Applications of Stainless Steel Ferrule Rope Mesh

    Architectural

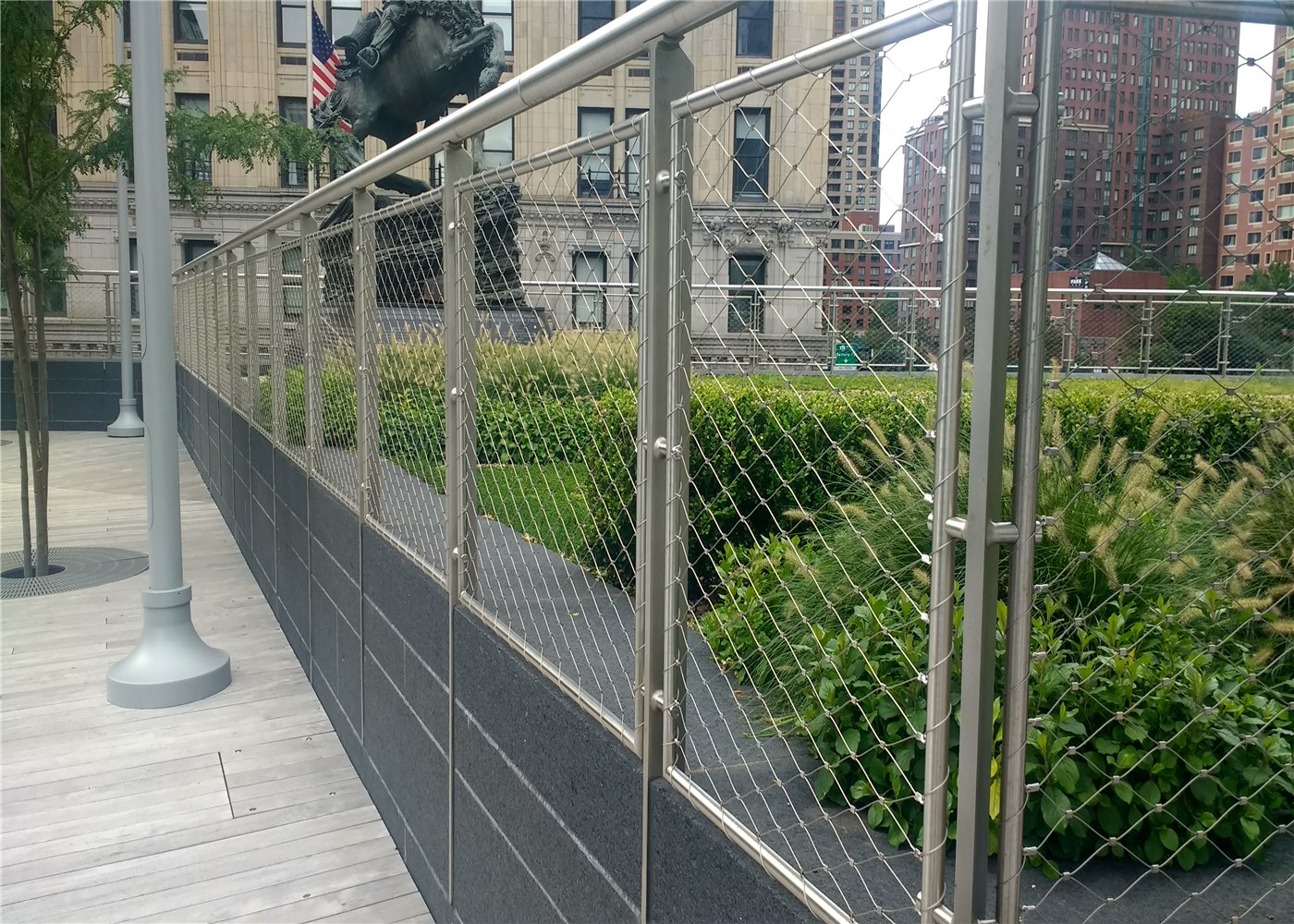

    • Bridge balustrades
    • Stair handrails
    • Façade green walls
    • Decorative ceilings

    Safety & Protection stainless steel ferrule rope mesh

    • Animal enclosures
    • Playground fences
    • Fall protection screens
    • Balcony safety netting

    Benefits of Using BMP Stainless Steel Ferrule Rope Mesh

    • Strong yet lightweight structure
    • Corrosion-resistant (AISI 304/316)
    • Long service life for both indoor & outdoor use
    • Flexible design & custom shapes supported
    • Modern, elegant appearance
    • Easy installation with complete accessories
    • Suitable for both tension structures & flexible mounting

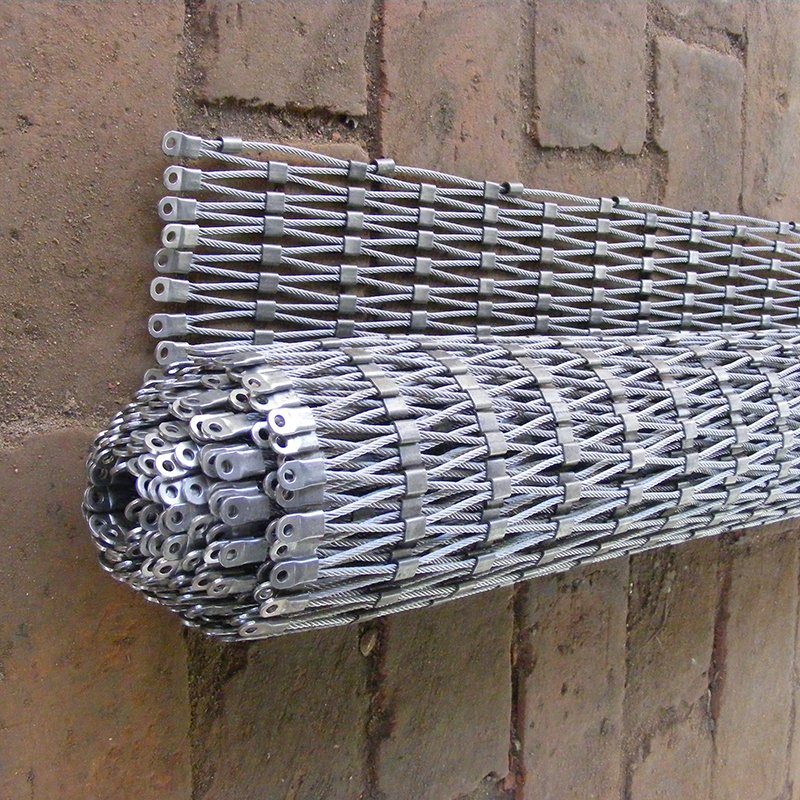

    Packing Information

    • Each panel packed in a moisture-proof polybag
    • Outer packaging: strong wooden crate or carton box
    • Accessories packed separately & clearly labeled
    • Each bundle labeled with product code & size
    • Optional palletized shipment for bulk orders

    Australian Customer Feedback stainless steel ferrule rope mesh

    “We purchased over 1,200 m² of stainless steel ferrule rope mesh from BMP for a hotel garden project in Sydney. The product met all specifications. The finish was flawless, and installation was smooth. We especially appreciated the customized mesh shapes for curved zones. Our client was very satisfied. Highly recommended.”
    — Australian Client, Sydney Skyline Architecture Co.

    Conditions to Consider Before Choosing This Mesh

    • Environmental Exposure: Use 316 stainless steel for marine or humid climates
    • Load Requirements: stainless steel ferrule rope mesh comes with Heavier loads require thicker cable diameters (e.g., 3.2 mm)
    • Aesthetic Needs: Choose PVD coating for black or custom color finishes
    • Mesh Openness: Smaller openings for child or animal safety
    • Structural Framing: Ensure secure frame or tension cable support
    • Installation Site: Indoor decorative vs outdoor protective will affect accessories
    • Budget: Select size & treatment to match project cost constraints

    Frequently Asked Questions (FAQ) stainless steel ferrule rope mesh

    Q: Is BMP stainless steel ferrule rope mesh suitable for outdoor use?
    A: Yes. For outdoor or marine environments, we recommend 316 stainless steel for maximum corrosion resistance.

    Q: Can you produce irregular-shaped mesh panels?
    A: Yes. We can custom-produce panels in any dimension, angle, or curved edge.

    Q: What is the minimum order quantity (MOQ)?
    A: 10 m². Sample panels are available upon request.

    Q: How long does production take?
    A: 7–15 working days, depending on the order size.

    Q: Do you provide installation tools and instructions?
    A: Yes. We supply complete installation kits and a guide (video/manual).

    Conclusion

    BMP Stainless Steel Ferrule Rope Mesh delivers the ideal combination of beauty, safety, and durability. From bridge railings to green façades, our mesh ensures strength, flexibility, and style for the long term.

    With successful applications across Australia and beyond, and backed by exceptional client satisfaction, BMP stands as your reliable global supplier for stainless steel mesh solutions.

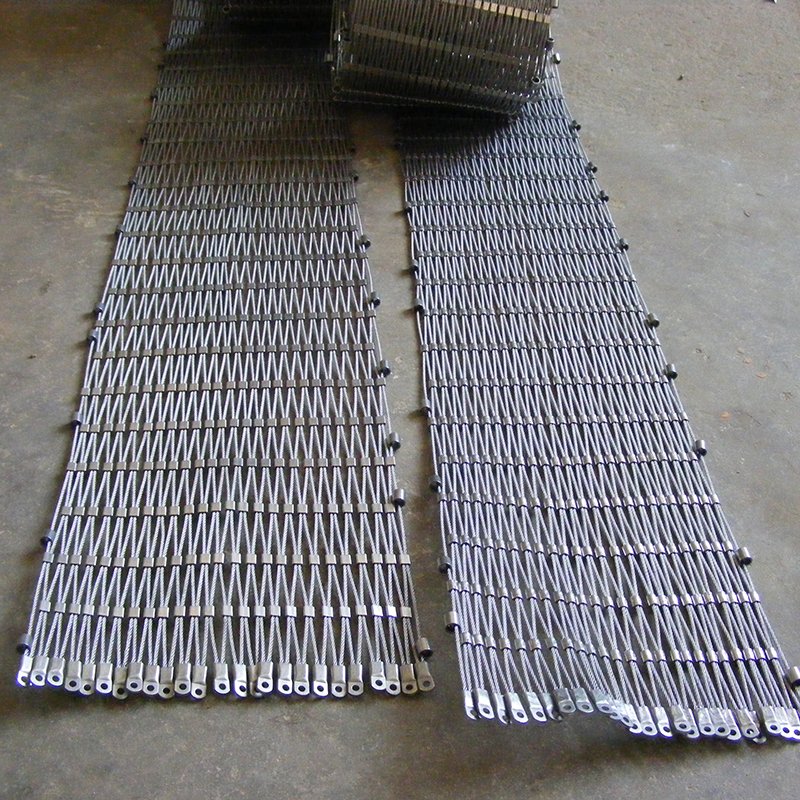

    Ferruled rope mesh is a type of flexible wire mesh made from stainless steel cables that are joined together at intersections by metal sleeves called ferrules.

    Here’s the breakdown:

    • Material – Usually AISI 304 or 316 stainless steel for strength and corrosion resistance.
    • Structure – Parallel steel cables are arranged diagonally (often at a 60° angle) and connected wherever they cross using pressed stainless steel ferrules (small metal clamps).
    • Flexibility – Because the cables are not rigidly welded but linked via ferrules, the mesh can be stretched, bent, or shaped to fit flat, curved, or irregular surfaces.
    • Strength – Despite being flexible, ferruled rope mesh is extremely strong and can handle high tensile loads, making it suitable for safety and security purposes.
    • Appearance – Has a clean, modern, and almost transparent look, so it blends into architectural designs while providing protection.

    Typical Uses:

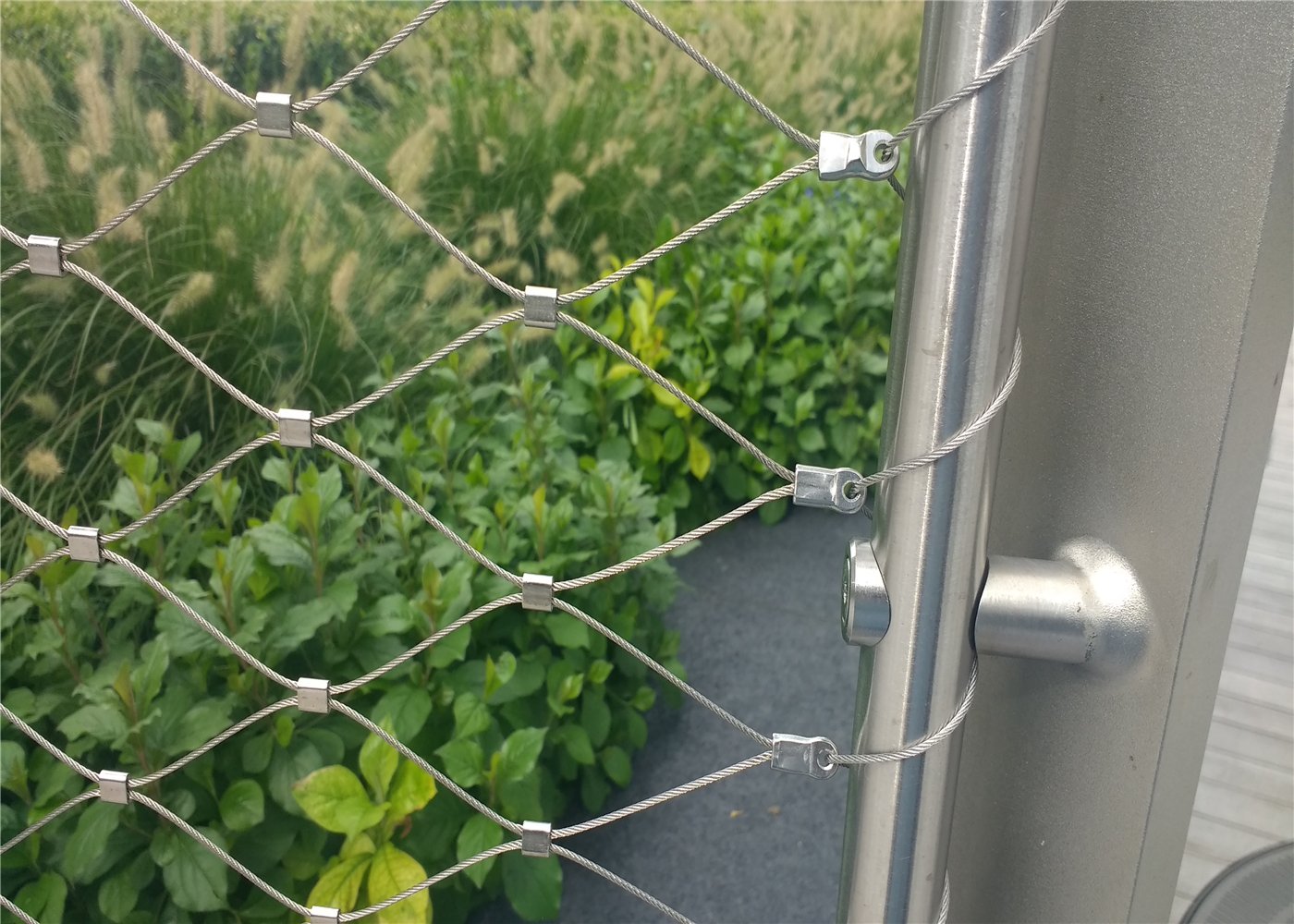

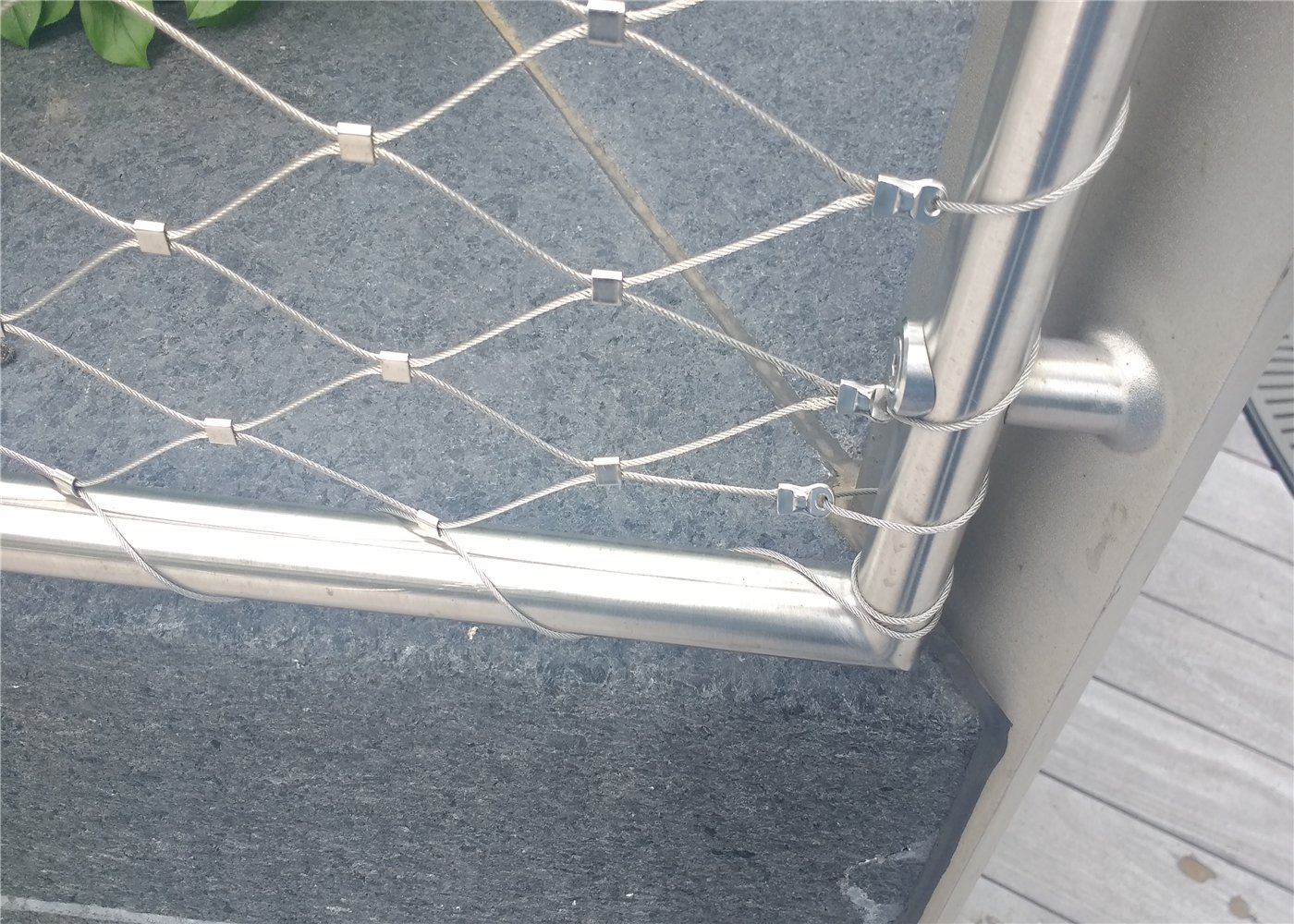

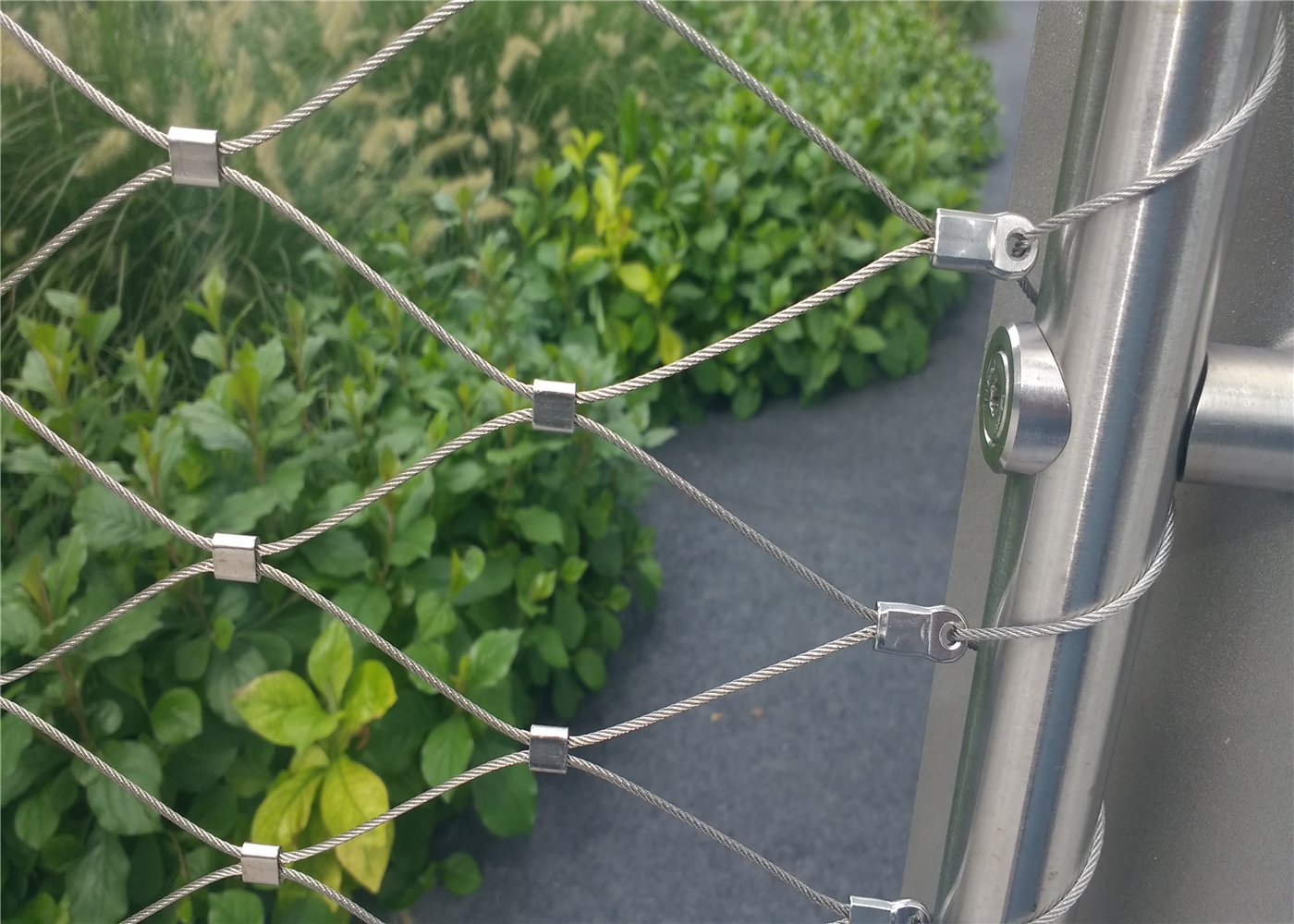

    • Bridge railings & balustrades
    • Zoo & aviary enclosures

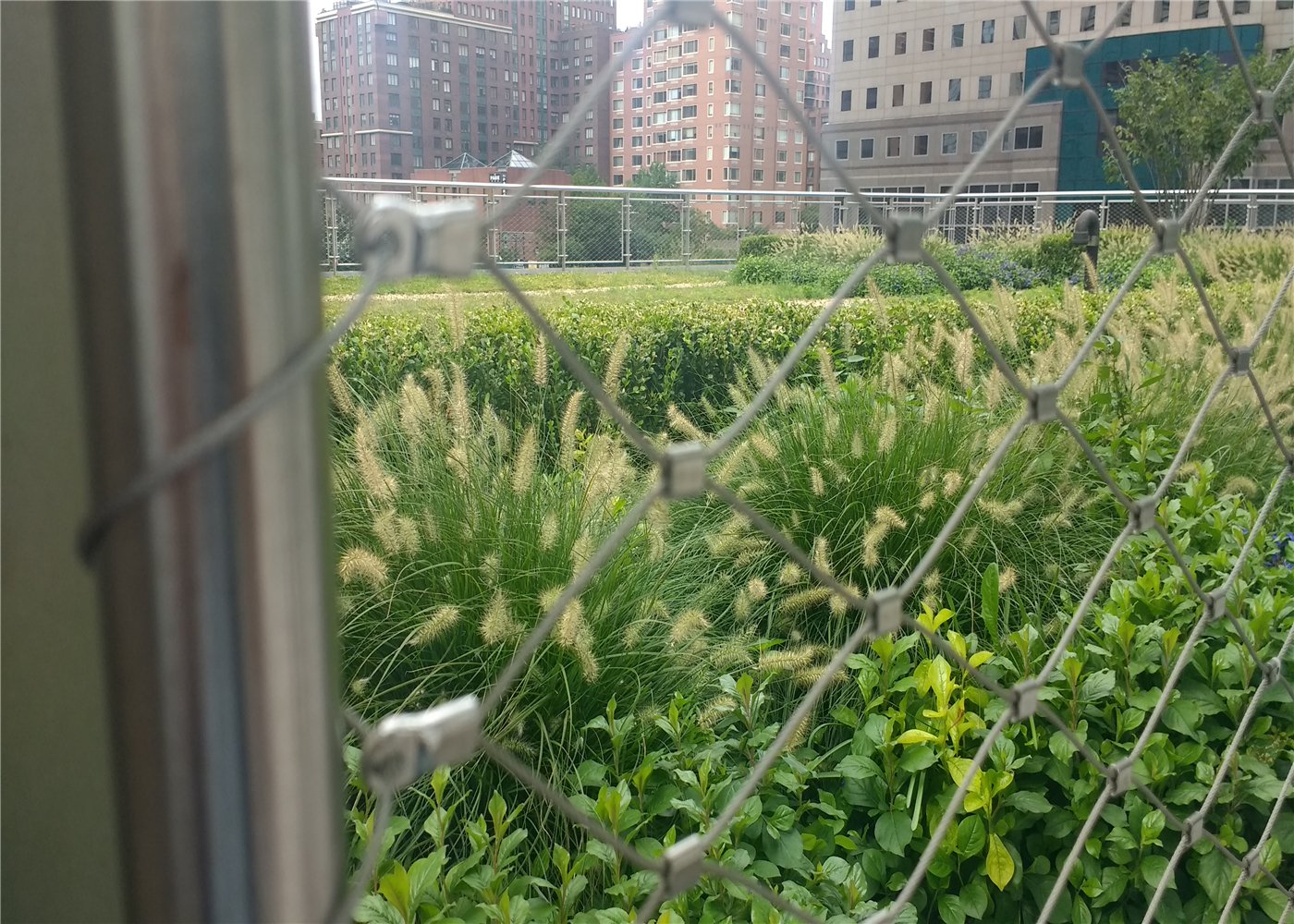

    • Green façades (plant trellises)
    • Safety nets on balconies or stadiums
    • Playground or sports fencing

    Key Difference from Knotted Rope Mesh:
    Ferruled rope mesh uses metal ferrules to join cables, while knotted rope mesh twists or weaves the cables together without additional sleeves. Ferruled type is often chosen for a sleeker, more uniform look.

    If you like, I can also make you an easy visual diagram showing exactly how the cables and ferrules connect, so the concept is crystal clear.

    1. Understanding the Two Types

    Ferrule Rope Mesh

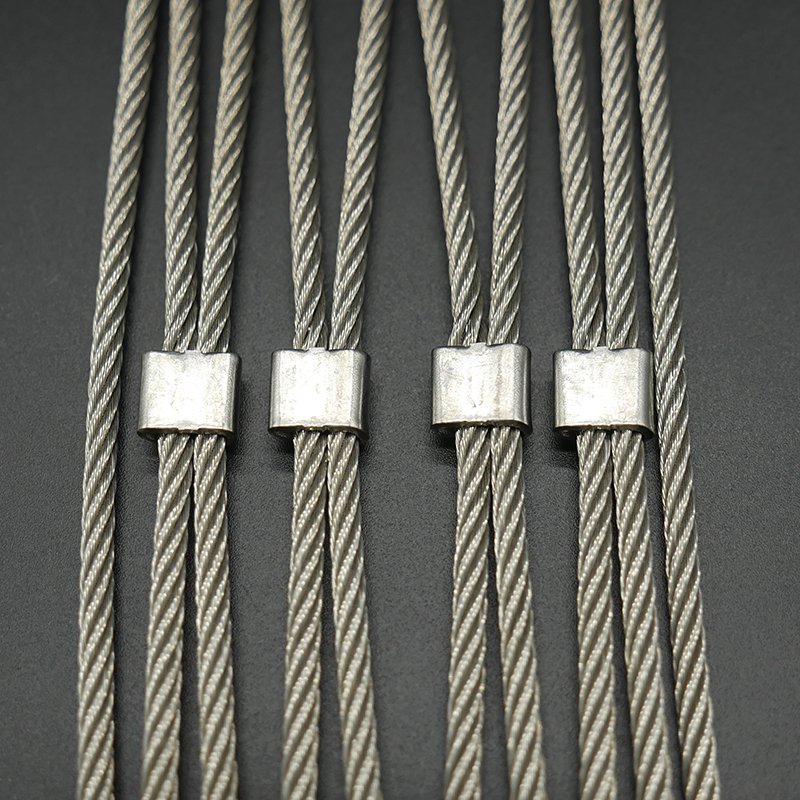

    • Connection Method: Stainless steel cables joined with pressed ferrules (metal sleeves).
    • Look: Sleek, uniform, with precise geometry.
    • Flexibility: Excellent — can fit flat, curved, or irregular shapes.
    • Strength: Very high tensile load capacity.
    • Best for: Modern architectural projects where visual appeal matters.

    Knotted Rope Mesh

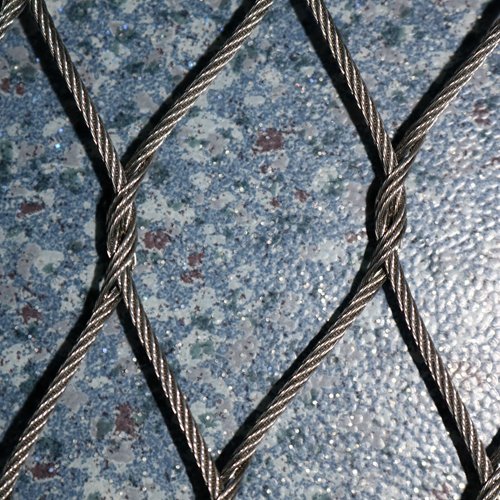

    • Connection Method: Cables are twisted or woven together into knots at intersections.
    • Look: More “woven” or net-like, with slightly less uniformity.
    • Flexibility: Also high, but the knots give a slightly softer texture.
    • Strength: Still strong, but slightly less rigid than ferrule type in some applications.
    • Best for: Animal enclosures, sports fences, or projects where cost-efficiency is key.

    2. Factors to Balance When Choosing

    Factor Ferrule Rope Mesh Knotted Rope Mesh
    Aesthetics Modern, precise, premium More natural net-like look
    Cost Higher (more processing & materials) Lower
    Strength Excellent for high loads Very good but slightly less tensile capacity
    Maintenance Minimal Minimal
    Shape Customization Excellent — can make irregular or curved panels easily Good — but knots may distort slightly on complex curves
    Visual Transparency Higher (fewer intersections) Slightly less (due to knots)
    Surface Smoothness Smooth — safe to touch in public areas Knots may protrude slightly

    3. Practical Recommendations

    • For high-end architectural façades, railings, and balustrades → Choose ferrule rope mesh. The clean lines and uniform geometry fit modern designs and luxury projects.

    • For zoos, aviaries, sports facilities, and playgrounds → Choose knotted rope mesh. It’s cost-effective, strong enough, and animal-friendly.

    • For curved or irregular installations where appearance is key → Ferrule type is easier to customize without distorting the pattern.

    • For budget-conscious large-area fencing → Knotted type can cover big areas at a lower cost.

    4. Balance Checklist Before Buying

    • Purpose – Is this mainly for safety, aesthetics, or both?
    • Environment – Coastal/marine? Choose 316 stainless steel regardless of type.
    • Budget – Ferrule mesh costs more but gives a premium look.
    • Load Requirements – For high tensile strength (e.g., fall protection), ferrule mesh is often favored.
    • Mesh Size – Smaller openings for child safety or animal containment.
    • Installation – Ferrule mesh panels arrive pre-shaped, reducing labor; knotted mesh may need more on-site adjustment.
