BMP supplies premium stainless steel ferrule rope mesh, also known as SS ferrule mesh or X-TEND mesh, widely used in architectural design, safety fencing, and green facades.
This advanced mesh combines stainless steel cables with pressed stainless steel ferrules, delivering a flexible yet ultra-strong structure with exceptional aesthetic appeal.
Using custom molds, we press each ferrule securely onto the cable, ensuring panel consistency, 耐用性, and readiness for demanding applications.
规格
- 材料: Stainless steel cable + ferrule
- Weave Types: Plain weave, twill weave, Dutch weave, twill Dutch weave
- Angle: Standard mesh angle is 60 degrees
- 表面处理选项: PVDF, PVD, spraying
- Available Finishes: Natural, black anodized, galvanized
- Accessories Provided: Screws, wall anchors, bolts, track rails
- Custom Shapes: Supports diagonal and irregular shapes
- Mesh Uses: Ideal for fencing, railing, trellis, 栏杆, façades
Complete Stainless Steel Ferrule Rope Mesh Specifications
3.2 毫米 (1/8″)
| 物品编号. | Cable Dia. (英寸) | Cable Dia. (毫米) | 网眼开口 (英寸) | 网眼开口 (毫米) | HS编码 | FOB Price (USD/m²) |
|---|---|---|---|---|---|---|
| BM-32120F | 1/8 | 3.2 | 4.75 × 8.23 | 120 × 207.8 | 73144900 | $38 |
| BM-32102F | 1/8 | 3.2 | 4 × 6.9 | 102 × 176.7 | 73144900 | $36 |
| BM-3290F | 1/8 | 3.2 | 3.55 × 6.15 | 90 × 156 | 73144900 | $35 |
| BM-3276F | 1/8 | 3.2 | 3 × 5.2 | 76 × 131.6 | 73144900 | $34 |
| BM-3251F | 1/8 | 3.2 | 2 × 3.46 | 51 × 88.3 | 73144900 | $32 |
2.4 毫米 (3/32″)
| 物品编号. | Cable Dia. (英寸) | Cable Dia. (毫米) | 网眼开口 (英寸) | 网眼开口 (毫米) | HS编码 | FOB Price (USD/m²) |
|---|---|---|---|---|---|---|
| BM-24102F | 3/32 | 2.4 | 4 × 6.9 | 102 × 176.7 | 73144900 | $34 |
| BM-2490F | 3/32 | 2.4 | 3.55 × 6.15 | 90 × 156 | 73144900 | $33 |
| BM-2476F | 3/32 | 2.4 | 3 × 5.2 | 76 × 131.6 | 73144900 | $32 |
| BM-2460F | 3/32 | 2.4 | 2.4 × 4.16 | 60 × 104 | 73144900 | $31 |
| BM-2451F | 3/32 | 2.4 | 2 × 3.46 | 51 × 88.3 | 73144900 | $30 |
2.0 毫米 (5/64″)
| 物品编号. | Cable Dia. (英寸) | Cable Dia. (毫米) | 网眼开口 (英寸) | 网眼开口 (毫米) | HS编码 | FOB Price (USD/m²) |
|---|---|---|---|---|---|---|
| BM-2076F | 5/64 | 2.0 | 3 × 5.2 | 76 × 131.6 | 73144900 | $30 |
| BM-2060F | 5/64 | 2.0 | 2.4 × 4.16 | 60 × 104 | 73144900 | $29 |
| BM-2051F | 5/64 | 2.0 | 2 × 3.46 | 51 × 88.3 | 73144900 | $28 |
| BM-2038F | 5/64 | 2.0 | 1.5 × 2.6 | 38 × 65.8 | 73144900 | $27 |
stainless steel ferrule rope mesh Cable Diameter: 1.6 毫米 (1/16″) & 1.2 毫米 (3/64″)
| 物品编号. | Cable Dia. (英寸) | Cable Dia. (毫米) | 网眼开口 (英寸) | 网眼开口 (毫米) | HS编码 | FOB Price (USD/m²) |
|---|---|---|---|---|---|---|
| BM-1676F | 1/16 | 1.6 | 1.2 × 2.08 | 76 × 131.6 | 73144900 | $26 |
| BM-1651F | 1/16 | 1.6 | 2 × 3.46 | 51 × 88.3 | 73144900 | $25 |
| BM-1638F | 1/16 | 1.6 | 1.5 × 2.6 | 38 × 65.8 | 73144900 | $25 |
| BM-1630F | 1/16 | 1.6 | 1.2 × 2.08 | 30 × 52 | 73144900 | $24 |
| BM-1625F | 1/16 | 1.6 | 1 × 1.73 | 25.4 × 44 | 73144900 | $24 |
| BM-1238F | 3/64 | 1.2 | 1.5 × 2.6 | 38 × 65.8 | 73144900 | $23 |
| BM-1230F | 3/64 | 1.2 | 1.2 × 2.08 | 30 × 52 | 73144900 | $23 |
| BM-1225F | 3/64 | 1.2 | 1 × 1.73 | 25.4 × 44 | 73144900 | $22 |
| BM-1220F | 3/64 | 1.2 | 0.8 × 1.39 | 20 × 34.6 | 73144900 | $21 |
Key Bullet Point Specs
- BM-32120F: 索 3.2 毫米 (1/8″), 网格 120 × 207.8 毫米, HS编码 73144900, FOB $38/m²
- BM-32102F: 索 3.2 毫米, 网格 102 × 176.7 毫米, FOB $36/m²
- BM-3290F: 索 3.2 毫米, 网格 90 × 156 毫米, FOB $35/m²
- BM-3276F: 索 3.2 毫米, 网格 76 × 131.6 毫米, FOB $34/m²
- BM-3251F: 索 3.2 毫米, 网格 51 × 88.3 毫米, FOB $32/m²
Applications of Stainless Steel Ferrule Rope Mesh
Architectural
- Bridge balustrades
- Stair handrails
- Façade green walls
- Decorative ceilings
安全性 & Protection stainless steel ferrule rope mesh
- 动物围栏
- Playground fences
- Fall protection screens
- Balcony safety netting
Benefits of Using BMP Stainless Steel Ferrule Rope Mesh
- Strong yet lightweight structure
- Corrosion-resistant (AISI公司 304/316)
- Long service life for both indoor & outdoor use
- Flexible design & custom shapes supported
- Modern, elegant appearance
- Easy installation with complete accessories
- Suitable for both tension structures & flexible mounting
Packing Information
- Each panel packed in a moisture-proof polybag
- Outer packaging: strong wooden crate or carton box
- Accessories packed separately & clearly labeled
- Each bundle labeled with product code & 尺寸
- Optional palletized shipment for bulk orders
Australian Customer Feedback stainless steel ferrule rope mesh
“We purchased over 1,200 m² of stainless steel ferrule rope mesh from BMP for a hotel garden project in Sydney. The product met all specifications. The finish was flawless, and installation was smooth. We especially appreciated the customized mesh shapes for curved zones. Our client was very satisfied. Highly recommended.”
— Australian Client, Sydney Skyline Architecture Co.
Conditions to Consider Before Choosing This Mesh
- Environmental Exposure: Use 316 stainless steel for marine or humid climates
- Load Requirements: stainless steel ferrule rope mesh comes with Heavier loads require thicker cable diameters (e.g., 3.2 毫米)
- Aesthetic Needs: Choose PVD coating for black or custom color finishes
- Mesh Openness: Smaller openings for child or animal safety
- Structural Framing: Ensure secure frame or tension cable support
- Installation Site: Indoor decorative vs outdoor protective will affect accessories
- 预算: Select size & treatment to match project cost constraints
Frequently Asked Questions (FAQ) 不锈钢套管绳网
问: Is BMP stainless steel ferrule rope mesh suitable for outdoor use?
A: 是. For outdoor or marine environments, we recommend 316 stainless steel for maximum corrosion resistance.
问: Can you produce irregular-shaped mesh panels?
A: 是. We can custom-produce panels in any dimension, angle, or curved edge.
问: What is the minimum order quantity (最小起订量)?
A: 10 平方米. Sample panels are available upon request.
问: How long does production take?
A: 7–15 working days, depending on the order size.
问: Do you provide installation tools and instructions?
A: 是. We supply complete installation kits and a guide (video/manual).
结论
BMP Stainless Steel Ferrule Rope Mesh delivers the ideal combination of beauty, 安全, 和耐用性方面相比其他网格产品具有明显优势. From bridge railings to green façades, our mesh ensures strength, 灵活性, and style for the long term.
With successful applications across Australia and beyond, and backed by exceptional client satisfaction, BMP stands as your reliable global supplier for stainless steel mesh solutions.

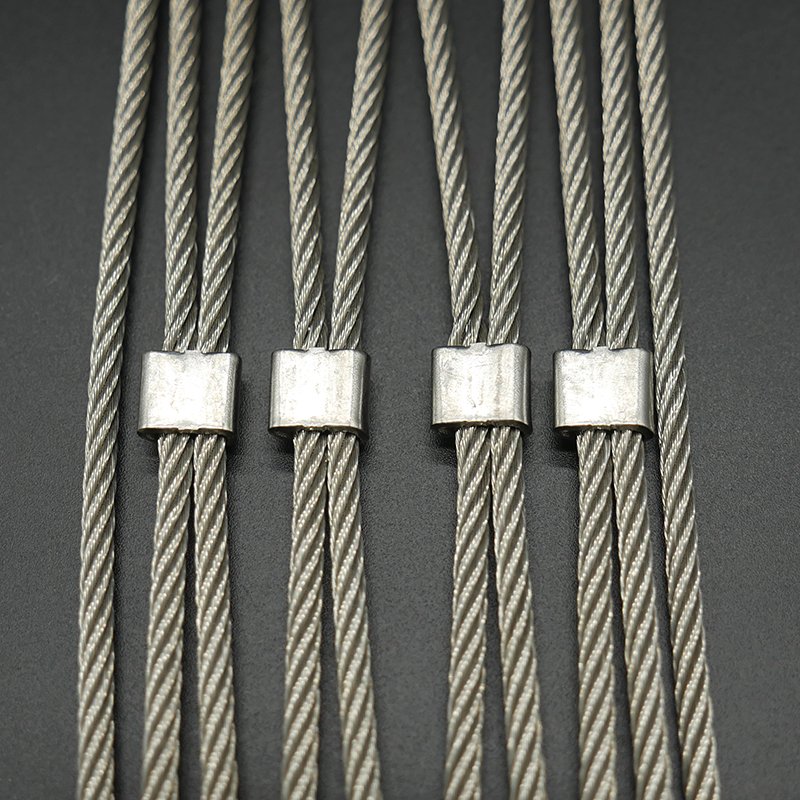

Ferruled rope mesh is a type of flexible wire mesh made from stainless steel cables that are joined together at intersections by metal sleeves called ferrules.
Here’s the breakdown:
- Material – Usually AISI 304 或 316 stainless steel for strength and corrosion resistance.
- Structure – Parallel steel cables are arranged diagonally (often at a 60° angle) and connected wherever they cross using pressed stainless steel ferrules (small metal clamps).
- Flexibility – Because the cables are not rigidly welded but linked via ferrules, the mesh can be stretched, bent, or shaped to fit flat, curved, or irregular surfaces.
- Strength – Despite being flexible, ferruled rope mesh is extremely strong and can handle high tensile loads, making it suitable for safety and security purposes.
- Appearance – Has a clean, modern, and almost transparent look, so it blends into architectural designs while providing protection.
Typical Uses:
- Bridge railings & 栏杆
- 动物园 & aviary enclosures
- Green façades (plant trellises)
- Safety nets on balconies or stadiums
- Playground or sports fencing
Key Difference from Knotted Rope Mesh:
Ferruled rope mesh uses metal ferrules to join cables, while knotted rope mesh twists or weaves the cables together without additional sleeves. Ferruled type is often chosen for a sleeker, more uniform look.
If you like, I can also make you an easy visual diagram showing exactly how the cables and ferrules connect, so the concept is crystal clear.
1. Understanding the Two Types
套管绳网
- Connection Method: Stainless steel cables joined with pressed ferrules (metal sleeves).
- Look: Sleek, uniform, with precise geometry.
- 灵活性: Excellent — can fit flat, curved, or irregular shapes.
- 强度: 非常高的拉伸载荷能力.
- 最佳用于: 注重视觉效果的现代建筑项目.

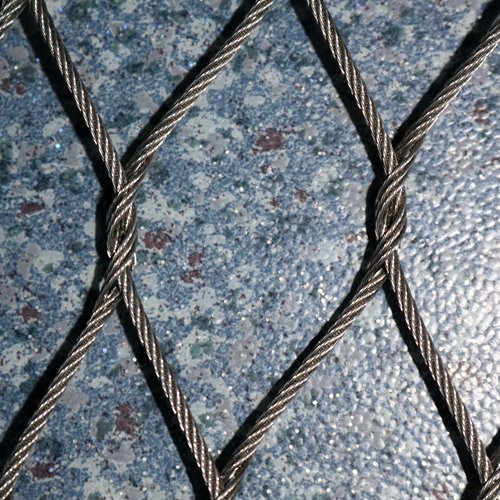

打结绳网
- Connection Method: 电缆在交叉点扭绞或编织成结.
- Look: 更“编织”或网状, 稍微不那么均匀.
- 灵活性: 同样高, 但结点使手感略柔和.
- 强度: 仍然坚固, 但在某些应用中比套环类型稍微不那么刚性.
- 最佳用于: 动物围栏, 运动围栏, 或成本效益为关键的项目.
2. 选择时需要权衡的因素
| 因素 | 套管绳网 | 打结绳网 |
|---|---|---|
| 美观 | Modern, 精确, 高级 | 更自然的网状外观 |
| 成本 | 较高 (更多加工 & 材料) | 较低 |
| 强度 | 非常适合高负荷 | 非常好，但拉伸能力略低 |
| 维护 | 极少 | 极少 |
| 形状定制 | 优秀——可以轻松制作不规则或弯曲面板 | 良好——但在复杂曲线上结点可能略有变形 |
| 视觉通透性 | 较高 (交点较少) | 略低 (由于结点) |
| 表面光滑度 | Smooth — safe to touch in public areas | Knots may protrude slightly |
3. Practical Recommendations
-
For high-end architectural façades, railings, and balustrades → Choose ferrule rope mesh. The clean lines and uniform geometry fit modern designs and luxury projects.
-
For zoos, 鸟舍, sports facilities, and playgrounds → Choose knotted rope mesh. It’s cost-effective, strong enough, and animal-friendly.
-
For curved or irregular installations where appearance is key → Ferrule type is easier to customize without distorting the pattern.
-
For budget-conscious large-area fencing → Knotted type can cover big areas at a lower cost.
4. Balance Checklist Before Buying
- Purpose – Is this mainly for safety, 美观性, or both?
- Environment – Coastal/marine? Choose 316 stainless steel regardless of type.
- Budget – Ferrule mesh costs more but gives a premium look.
- Load Requirements – For high tensile strength (e.g., fall protection), ferrule mesh is often favored.
- Mesh Size – Smaller openings for child safety or animal containment.
- Installation – Ferrule mesh panels arrive pre-shaped, reducing labor; knotted mesh may need more on-site adjustment.
