X Tend鋼索網

» X趨向網格 » X 頂級電纜網格

X Tend鋼索網

類別和標籤:
X趨向網格

型號.: 繩網
表面處理: 電鍍鋅, 拋光
類型: 不銹鋼普通金屬絲網
編織技術: 平紋
技術: 編織
加工服務: 切割
特徵: 耐腐蝕性
運輸包: 內置紙管, 然後用防水紙包裝
規範: 傳統, 可訂製
商標: BMP嘅
起源: 河北, 中國
海關編碼: 73144900
生產能力: 10,000 每週卷數
包裝尺寸: 100.00 厘米 × 100.00 厘米 × 50.00 厘米
包裝毛重: 1000.000 公斤
價格範圍: $9.28 – $39.22 每平方米

詢問

規格

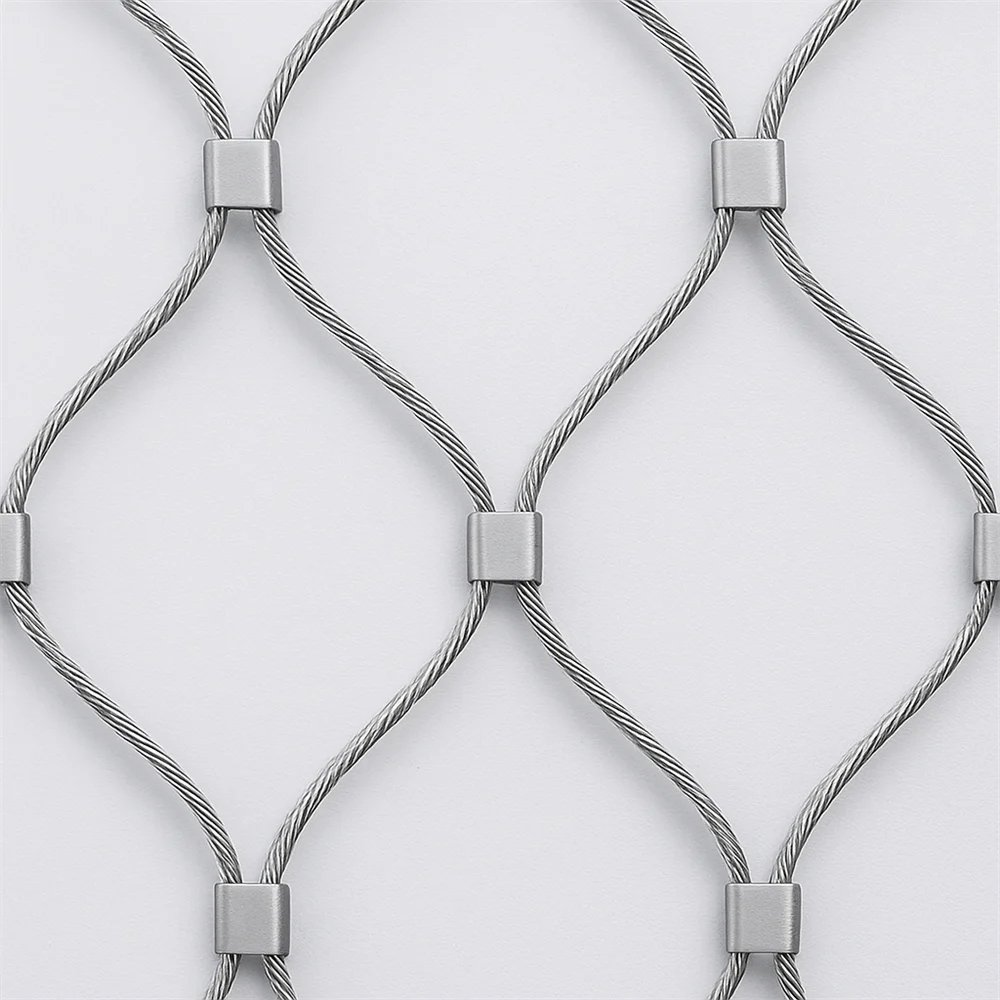

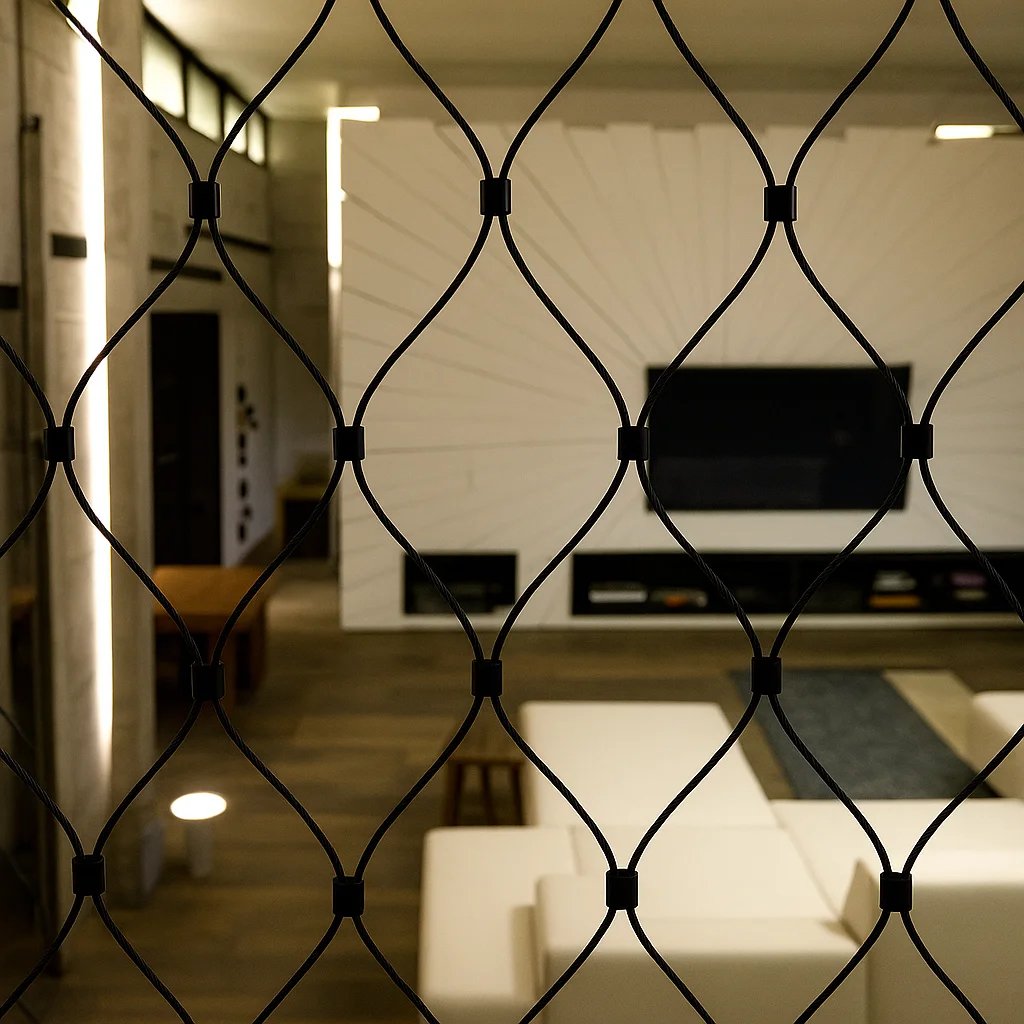

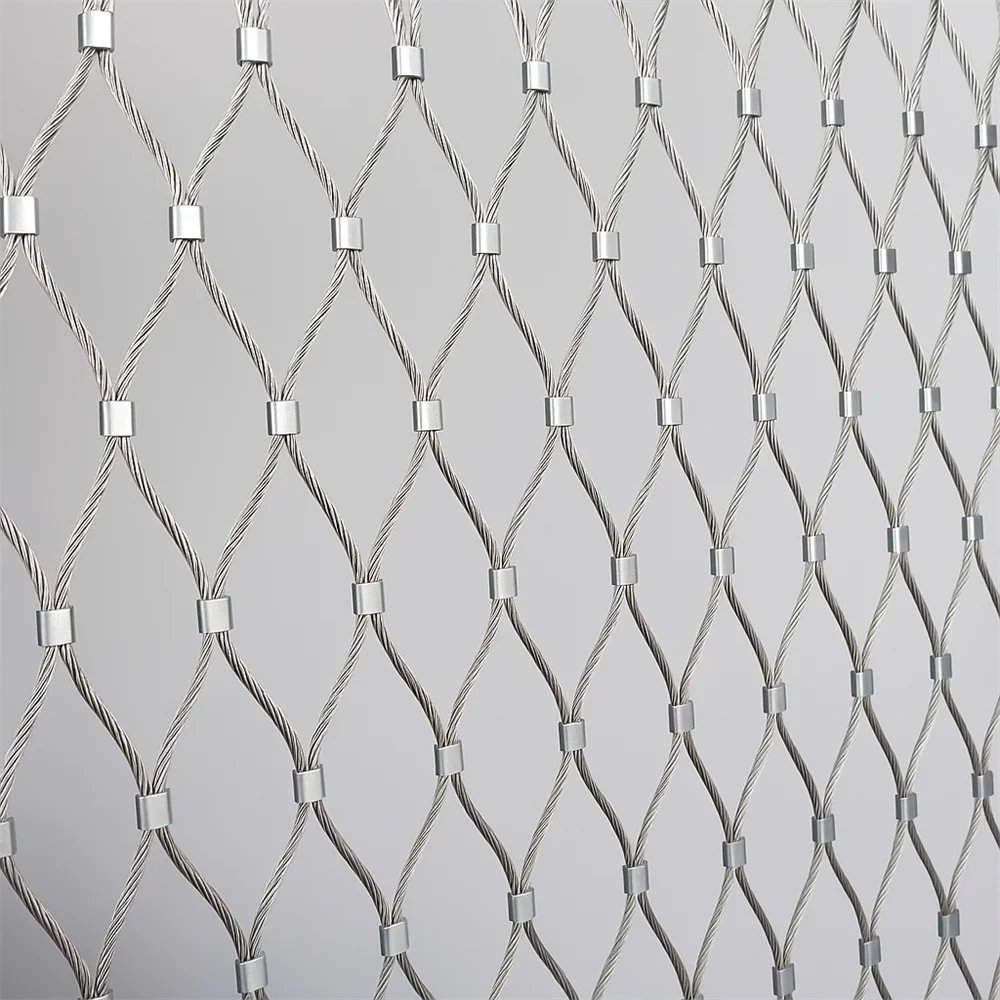

BMP’s X Tend鋼索網 是一種優質的建築及安全網格，由 不銹鋼鋼絲繩, 製造成靈活的網狀結構. 無論你是在保護動物園, 安裝橋樑護欄, 還是設計建築立面, 此網格結合了 強度, 透明度, 實用性和優雅.

它使用3D柔性圖案，可以在受力時彎曲但永不斷裂. 你可以安裝於水平, 垂直, 或3D空間方向. 套筒 (配件) 可根據需求選用不鏽鋼或鋁製.

🔷 BMP嘅 | 材料 & 網格結構

線材材料: 不鏽鋼 AISI 304, 316, 或316L
結構: 7×7 或 7×19 (其他類型可按要求提供)
壓套材料: 鋁或不鏽鋼
開口寬度 (安省安徽省會計師事務所): 20 毫米 – 200 毫米
網格方向: 水平 / 垂直
邊緣圖案: 標準 / 加強 (custom downloadable)
Weave Type: Ferrule or Knotted
Mesh Height/Width: Custom Cut-to-Size

🔷 BMP嘅 | Advantages of X Tend Cable Mesh

✅ Extremely Strong – Withstands up to 1,570 磅 (714 kgf)
✅ Corrosion Resistant – Performs in saltwater, 防雪, or heat
✅ Soft but Durable – Doesn’t harm animals or hands
✅ 視覺通透性 – Doesn’t block view or light
✅ 環保 – 100% recyclable stainless steel
✅ Design-Friendly – Easily forms curved, angled, and cylindrical shapes

Applications of X Tend Cable Mesh

✅ Zoo Mesh (鳥舍, 猴子籠舍, tiger cages)
✅ Balconies and Bridge Railings
✅ Playground Safety Nets
✅ Façade Decoration and Green Wall Supports
✅ Elevator Shaft Nets
✅ Staircase Fall Protection
✅ Public Anti-Climb Barriers
✅ Airport Terminals and Stadiums

Technical Specification Table

法典	Ø (毫米)	安省安徽省會計師事務所 (毫米)	哦 (毫米)	破斷力 (磅)
BMP01	1.0	20	35	160
BMP02	1.0	25	43	160
BMP03	1.0	30	52	160
BMP04	1.0	35	61	160
BMP05	1.0	40	69	160
BMP06	1.0	50	87	160
BMP07	1.0	60	104	160
BMP08	1.0	70	121	160
BMP09	1.0	80	139	160
BMP10	1.5	25	43	360
BMP11	1.5	30	52	360
BMP12	1.5	35	61	360
BMP13	1.5	40	69	360
BMP14	1.5	50	87	360
BMP15	1.5	60	104	360
BMP16	1.5	70	121	360
BMP17	1.5	80	139	360
BMP18	1.5	100	173	360
BMP19	1.5	120	208	360
BMP20	1.5	140	242	360
BMP21	1.5	160	277	360
BMP22	1.5	180	312	360
BMP23	1.5	200	346	360
BMP24	2.0	40	69	650
BMP25	2.0	50	87	650
BMP26	2.0	60	104	650
BMP27	2.0	70	121	650
BMP28	2.0	80	139	650
BMP29	2.0	100	173	650
BMP30	2.0	120	208	650
BMP31	2.0	140	242	650
BMP32	2.0	160	277	650
BMP33	2.0	180	312	650
BMP34	2.0	200	346	650
BMP35	3.0	50	87	1570
BMP36	3.0	60	104	1570
BMP37	3.0	70	121	1570
BMP38	3.0	80	139	1570
BMP39	3.0	100	173	1570
BMP40	3.0	120	208	1570
BMP41	3.0	140	242	1570
BMP42	3.0	160	277	1570
BMP43	3.0	180	312	1570
BMP44	3.0	200	346	1570

📝 Full table available on request (over 40 mesh codes from 1.0–3.0mm)

🔷 BMP嘅 | How to Order X Tend Cable Mesh

Format:
材料 – 產品編號. – Orientation – Edge Style – Piece Size

Example:
AISI公司 316 – FSCM28 – Vertical – Reinforced Edge – 2.4m × 8m

What Conditions Require This Fence?

Application Environment	Recommendation
Coastal area	Use 316 或316L不銹鋼
Animal fencing (動物園, aviary)	Small aperture (under 70×121 mm)
Public stairs, 陽台	Use ferrule type with reinforced edge
3D art structure or façade	Use flexible vertical installation
Bridges & Airports	High-strength mesh (≥2.0 mm, 650 lbs↑)

包裝 & 送貨

📦 Rolled into bundles with edge protection
📜 Label with size, type, 數量, HS code
📤 Wooden case or steel rack for heavy orders
🛫 Supports sea/air shipping. Ready in 7–15 days
🧰 Includes optional tension hardware or drawings

FAQ – X Tend Cable Mesh

Q1: Is the mesh flexible?
是的, it can bend into 3D curves without breaking.

Q2: Does the mesh come with ferrules?
是的, choose between ferruled or knotted types.

Q3: How long is the lead time?
Usually 7–10 working days.

Q4: Can I get a free sample?
是的, BMP offers free mesh samples.

Q5: Is this mesh climb-proof?
是的, it is anti-climb, especially with tight apertures.

Conclusion – Why Choose BMP’s X Tend Cable Mesh

BMP offers you a stainless steel mesh that’s 靈活, 安全, 強, and beautiful. Whether it’s protecting people, 動物, or architecture, our X Tend鋼索網 does the job better, cleaner, and longer than traditional fencing.
