Stainless steel wire rope mesh is a versatile material that combines safety and aesthetics in various applications. This article discusses the two main types of stainless steel zoo mesh – 套圈同打結, also called inter-woven cable meshand their specifications. We will also cover the available finishes, such as Black Oxide and vinyl coating, for added protection and visual appeal.

20230422085456_99641

stainless steel rope mesh Types

  1. Stainless Steel Ferrule Wire Rope Mesh

Ferrule wire rope mesh, also known as cable mesh, is similar to knotted rope mesh in terms of physical properties. The primary difference lies in the use of ferrules to connect neighboring ropes, forming diamond-shaped openings. These ferrules are made from the same material as the rope wire. The standard angle is 60°, but other angles like 10° and 90° are also available. Due to its flexibility and customizable dimensions, ferrule wire rope mesh is commonly used in applications like green walls and balustrade mesh.

  1. Stainless Steel Knotted Wire cable Mesh

Stainless Steel Knotted wire rope mesh is an inter-woven, 100% hand-woven mesh made from high tensile stainless steel cables in 7 × 7 或 7 × 19 constructions. This type of mesh offers several advantages over similar products in terms of practicality, security, 耐久性, 美學, and lifespan.

20230422085608_83254

規格

The table above provides the specifications of the Stainless steel wire rope mesh products popular in the USA market. These products have different wire cable diameters, mesh hole sizes, and weights.

電纜直徑 網格尺寸
1.2毫米 – 1.6毫米 20毫米 – 60毫米
2.0毫米 – 2.4毫米 40毫米 – 80毫米
3.0毫米 – 3.2毫米 60毫米 – 120毫米

Finishes

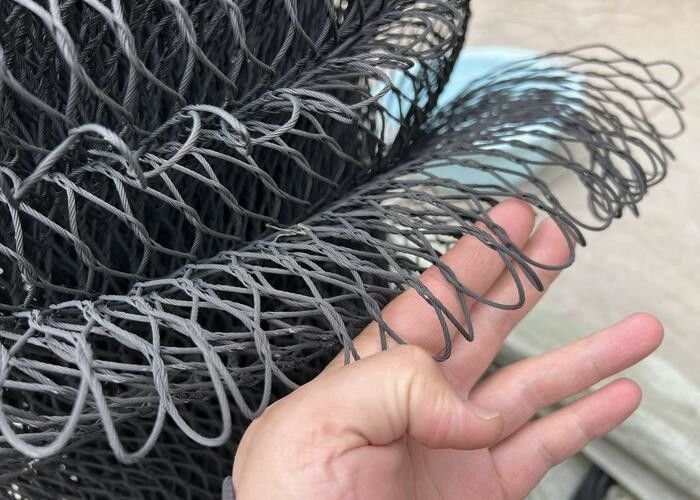

  1. Black Oxide Finish

The black oxide finish is achieved through oxidation, creating a uniform, long-lasting black oxide coating on the wire rope’s surface. This coating not only enhances the mesh’s appearance but also offers increased corrosion resistance and durability. Black stainless steel wire rope mesh is an excellent choice for various applications, such as zoo mesh fencing and security.

pl166682962-aperture_20mm_300mm_metal_rope_mesh_high_durability_with_excellent_corrosion_resistance

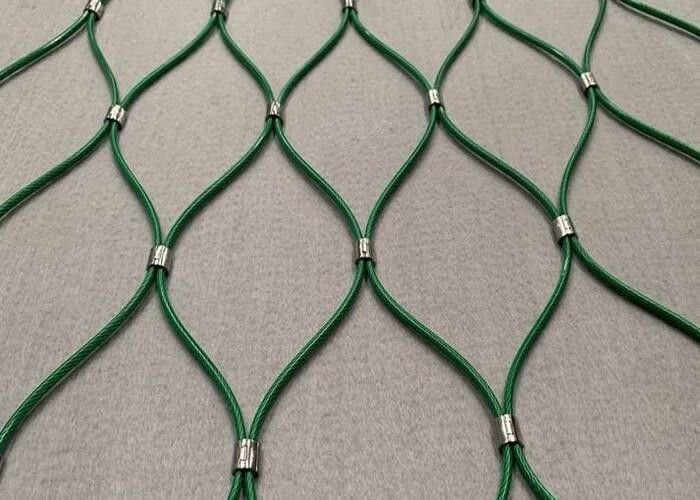

  1. 乙烯基塗層

Vinyl coating is a protective layer made of synthetic resin or plastic, applied to the surface of the stainless steel rope mesh. It offers numerous benefits, including abrasion and scratch resistance, fire and heat resistance, electrical insulation, sealing ability, and improved aesthetics. 此外, vinyl coatings enhance the mesh’s corrosion resistance and provide nonstick properties. These coatings are available in a range of colors to suit different design requirements.

pl167068148-high_tensile_black_oxide_cable_mesh_ferruled_and_knotted_mesh_net_for_tiger



結論

Stainless steel wire rope mesh is a versatile material with numerous applications, offering both safety and aesthetics. With different types, 規格, and finishes available, it can cater to a wide range of requirements. Whether you need a durable solution for security or an attractive option for design purposes, stainless steel cable mesh is an excellent choice.
